ElectroBraid® Copper Split Bolt Connector (10 count)

Model #: ASPLTC10-EB

20 reviews
0 5 4.8
Havahart
29.99
$29.99

Reward Points with My Account Learn More »





  • ElectroBraid® rope splicer Connector
  • Connects one braided rope to another without losing power
  • 10 Connectors per bag
  • Service Experts Available To Answer Your Installation Questions

Buy this item in Canada »
Description

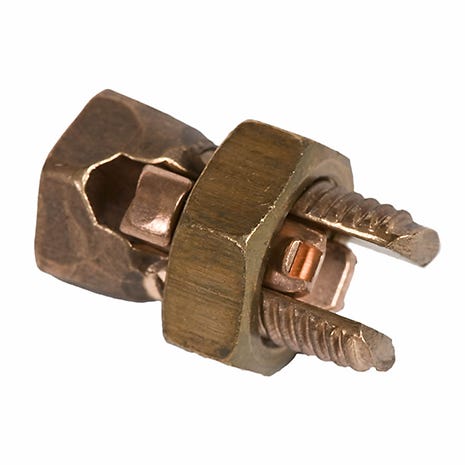

ElectroBraid® Copper Split Bolt Connector

Rely on ElectroBraid® copper split bolt connectors to make all the important connections in your ElectroBraid® fence system, and extend power to all areas of your fence enclosure.

  • Connects two ElectroBraid® strands without losing power
  • Use for starting or terminating a strand
  • Allows you to makes electrical connections between the fence and charger, and fence and ground rods
  • An integral part of the copper-based ElectroBraid® system
  • 10 per package



How many copper split bolt connectors do I need?

Use copper split bolt connectors to start or terminate a strand of ElectroBraid®, to splice to strands together or for electrical connections.

  1. Count the number of end posts, and multiply by the number of strands used in your fence = ____.
  2. Count the number of fence lines that exceed 1000 feet (the length of Braid™ included in each reel of ElectroBraid®) and multiply by the number of strands used in your fence = _____.
  3. For each additional electrical connection (examples: connecting copper lead-out wire from your charger/energizer to your ElectroBraid® fence*, connecting the copper lead-out wire from ground rods to the fence), connecting Braid™ to each horse gate handle, you will need one copper split bolt connector = ____.
  4. Add these three numbers together = _____. This in the number of copper split bolt connectors you need. * For easier troubleshooting, many ElectroBraid® customers choose to use an extra copper split bolt connector to connect electrical components. That way, if you want to disconnect the electrical from a strand, you do not have to use a tensioning device to hold tension on the strand.

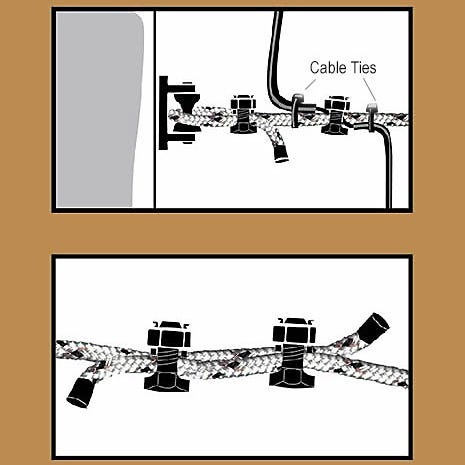

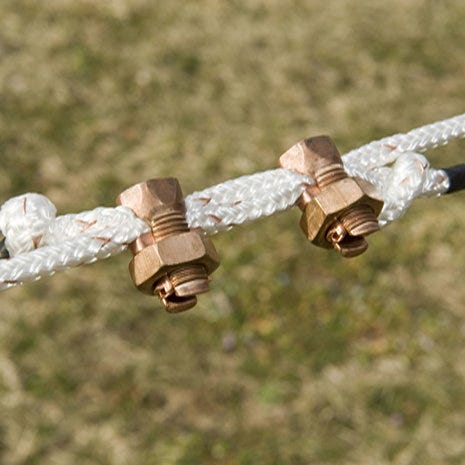

How do I splice ElectroBraid® using a copper split bolt connector?

Use an ElectroBraid® copper split bolt connector when you come to the end of one reel of ElectroBraid® and are starting another.

  1. Make sure to tape and singe both ends of Braid™ you plan to connect.
  2. Unscrew the copper split bolt connector partway and place the two ends of ElectroBraid® between the two parts of the connector, overlapping the strands by about four (4) inches and ensuring there is direct contact between the copper strands in each strand of Braid™.
  3. Tighten the copper split bolt connector to secure the Braid™ in place.

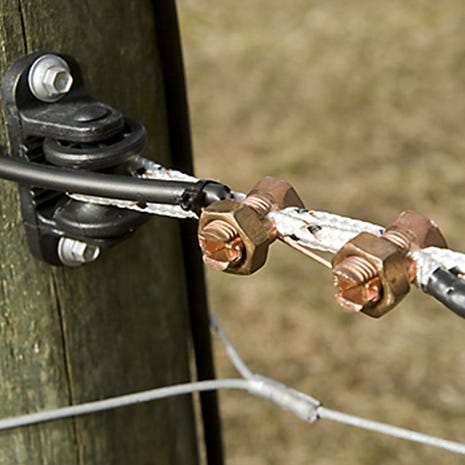

How do I use a copper split bolt connector when installing end posts?

  1. Tape and singe the leading end of the Braid™.
  2. Unscrew the copper split bolt connector partway slide it over the leading end of the ElectroBraid® strand.
  3. Then feed the Braid™ through the ElectroBraid® roller insulator in white or black and fold the ElectroBraid® back on itself.
  4. Feed the leading end of the Braid™ through the split bolt connector again (this time in the opposite direction).
  5. Position the copper split bolt connector about two (2) inches from the insulator and at least two (2) inches of ElectroBraid® outside connector.
  6. Tighten the copper split bolt connector to secure the Braid™ in place.

Use only recommended materials

Do not use make-shift insulators, connectors or ordinary electrical wire with your ElectroBraid® fence system. Use only copper-clad ground rods (ElectroBraid® copper ground rod kit or ElectroBraid® sectional ground rod kit, copper split bolt connectors and ElectroBraid® copper lead-out wire. Using genuine ElectroBraid® materials:

  • prevents corrosion due to electrolysis
  • provides optimum electrical conductivity
  • reduces maintenance
  • increases the life of your fence

There’s a reason ElectroBraid® is America’s #1 Horse Fence

ElectroBraid® fencing components are made to be durable and perform as part of the safe, high-quality copper-based ElectroBraid® fencing system. Use ElectroBraid® as a permanent perimeter fence or a movable fence for rotational grazing.



ElectroBraid® Braid will not rust, rot, lose strength due to sunlight or weathering, break when installed as a permanent fence or prove defective in workmanship or material. Any reel of ElectroBraid® Braid that is defective will be replaced at no charge to the purchaser. This warranty is in effect for 25 years from the date of purchase.


Specs

ElectroBraid® Copper Split Bolt Connector - Specifications

  • ElectroBraid® rope splicer Connector
  • Connects one braided rope to another without losing power
  • Packaged 10 per card
Videos

Reviews

Disclaimer: Zareba® System does not endorse any information contained in product reviews. Please follow all label instructions for your specific use.

Most Recent Customer Reviews

Review Rate
Review posted on www.zarebasystems.com
July 21, 2019
Great Product, Excellent service By Dave

I have been using these bolt connectors for a long time. Greart product. Zeareba has been top notch when it comes to quick service and response to inquiries.

Review Rate
Review posted on www.zarebasystems.com
July 17, 2019
Would highly recommend By Dave

Excellent company, very fast order fulfillment and shipping, responds rapidly to customer concerns, would highly recommend.

Review Rate
Review posted on www.zarebasystems.com
June 8, 2019
Very reliable By Keith

I have been using these connectors on Electrobraid fence for almost 20 years with zero problems.

Review Rate
Review posted on www.zarebasystems.com
June 8, 2019
Very reliable By Keith

I have been using these connectors on Electrobraid fence for almost 20 years with zero problems.

Review Rate
Review posted on www.zarebasystems.com
August 27, 2018
Excellent By Joe

Both the products and service are the best I have ever received

Review Rate
Review posted on www.zarebasystems.com
June 11, 2018
Way over priced By TheMan419

These do what they say they will do. However you can get 50 of them for $43 on amazon. They are no name items, but do the exact same thing. I just put up quite a bit of fence (used like 5 rolls of electrobraid) and the amazon connectors performed flawlessly.

Response From Zareba®
Jennifer : Consumer Relations Representative

Thank you for providing this feedback! We are glad you were able to get the fence installed. Prices will vary depending on what website/retailer the product is purchased from as we do not undercut our retailers.This information has been shared with our Product Managers.

Please feel free to contact our Consumer Relations Team at 1-888-430-3330 with any questions or for additional assistance.

Review Rate
Review posted on www.zarebasystems.com
June 3, 2018
This works for me By Lisa

I have not found a better connector for the Electrobraid fencing.

Review Rate
Review posted on www.zarebasystems.com
May 18, 2018
Great product By Vicki GG

I love Elecrobraid and the products with it. Very safe for my horses. No injuries in 10 years

Review Rate
Review posted on www.zarebasystems.com
December 3, 2017
Exc prices By Faye

Great price on a great product

Review Rate
Review posted on www.zarebasystems.com
October 12, 2017
Awsome! By Mickie

Super great product.

Read All Reviews (20) Write a Review
Q&A
Q.I would like to run the back line of my fence with electrobraid. Would I be able to add it to my existing electric fence? Or does it need to be separate where it is copper wire? Thanks.4wy5
A.

We recommend using one type of fence wire on the fence line as mixing metals may have a negative impact on the fence system.
